June 2022
ApplicationsFlexibility for Metrology
Measurement equipment is commonly used across all industries. Some such equipment, such as dial indicators and profilometers are readily available. As products and processes evolve, customized in-line metrology becomes paramount to maintaining quality and consistency.

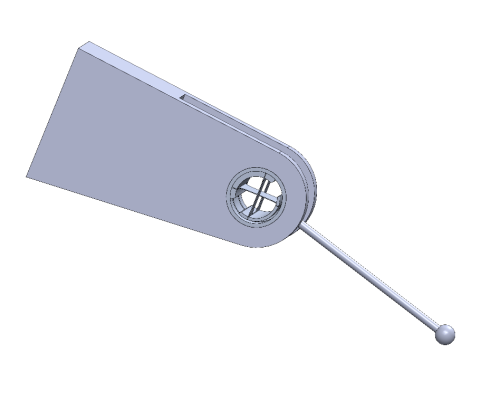

Many different types of instruments function using a simple lever over a central (pivot) point. Ball bearings are a typical solution, though often inhibited by stiction and friction and required maintenance.
Notable Properties for Sensitive Applications
Free-Flex Pivots are a convenient, frictionless solution that offer many benefits over a typical bearing for sensitive applications, particularly those with fine motions. Notable properties include:
▸No increase in starting torque due to stiction
▸Capable of infinite life without maintenance
▸Vacuum and clean-room friendly
Interested in Free-Flex® Pivots for your metrology application?
